Home / Fabrics / Extrablock 330 ShadeMesh

Extrablock 330 ShadeMesh

Extrablock 330 offers the ultimate UV protection, reducing UV radiation by 96-98%.

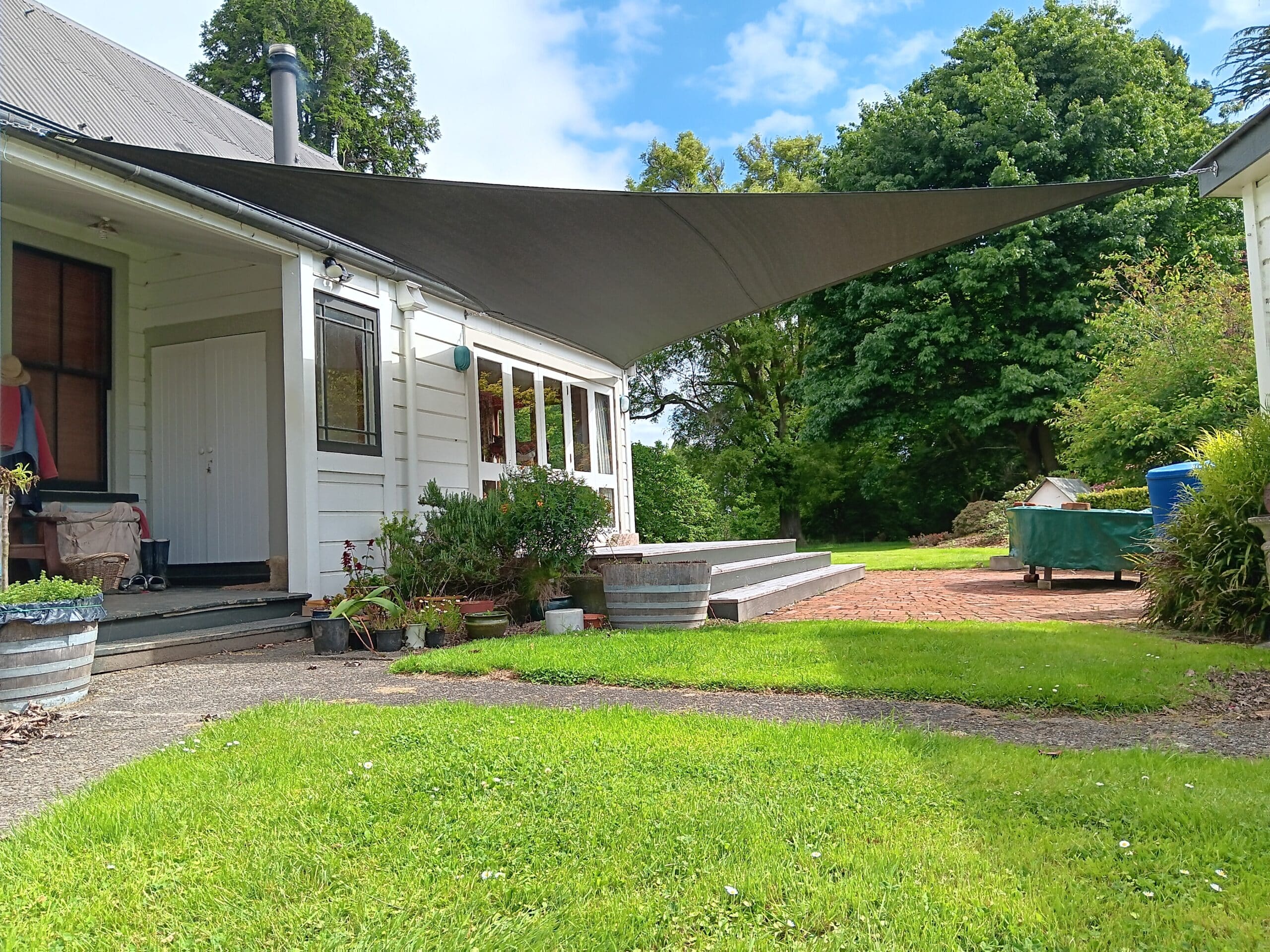

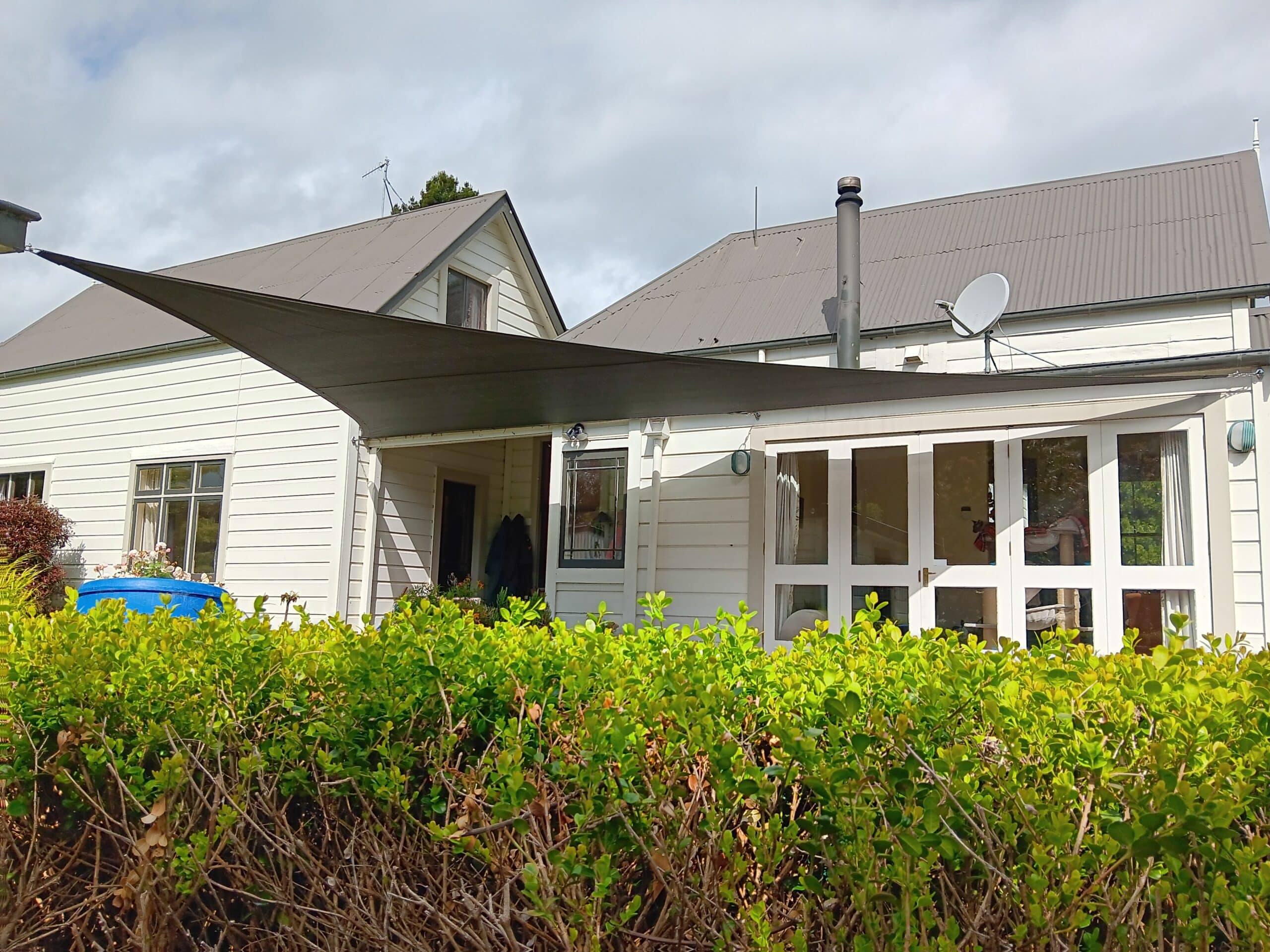

Perfect for shade sails where sunburn protection is the main concern. Extrablock 330 is also our only fire retardant shade mesh.

  • Provides 81-97% shade (depending on colour)
  • Reduces UV radiation levels by 96-98% (depending on colour)
  • 12 year UV resistance guarantee
  • All colours are fire retardant except Cream, Beige, Yellow, and Red

Products that use Extrablock 330 ShadeMesh

Extrablock 330 ShadeMesh Specifications

Subject to change in view of technical upgrades. Values indicated are average nominal values for normal production (+/- 5%).

Standard
Shade Factor % 81-97%
UVR Block % 96-98%
UPF 21-41%
Fabric width 3000mm
AS1530.2 Fire Retardancy Results Flammability 1, Spread Factor 0, Heat Factor 1
AS1530.3 Fire Retardancy Results Ignitability 13, Spread of Flame 7, Heat Evolved 2, Smoke 5
California State Fire Marshal Fire Retardancy Results Complies with California State Marshal requirements, Title 19, Section 1237
Width 3000mm

Stock Colour Range

Please note: actual colour may vary. Contact us or visit our showroom to see colour samples.


Pearl Onyx
top side
Pearl Onyx
under side
Cream
top side
Cream
under side
Beige
top side
Beige
under side
Latte (FR)
top side
Latte (FR)
under side
Mint Green (FR)
top side
Mint Green (FR)
under side
Persian Green (FR)
top side
Persian Green (FR)
under side
Forest Green (FR)
top side
Forest Green (FR)
under side
Olive Green (FR)
top side
Olive Green (FR)
under side
Chocolate (FR)
top side
Dove Blue (FR)
top side
Dove Blue (FR)
under side
Lime Green (FR)
top side
Lime Green (FR)
under side
True Blue (FR)
top side
True Blue (FR)
under side
Navy (FR)
top side
Navy (FR)
under side
Silver (FR)
top side
Silver (FR)
under side
Charcoal (FR)
top side
Charcoal (FR)
under side
Midnight (FR)
top side
Midnight (FR)
under side
Yellow
top side
Yellow
under side
Red
top side
Red
under side
Sunblaze
top side
Sunblaze
under side
Oxide Red (FR)
top side
Oxide Red (FR)
under side
Purple (FR)
top side
Purple (FR)
under side

Downloads
